READ MOREApplication scenarios and scope of application
Aerospace: Fabrication of turbine blades and structural components.

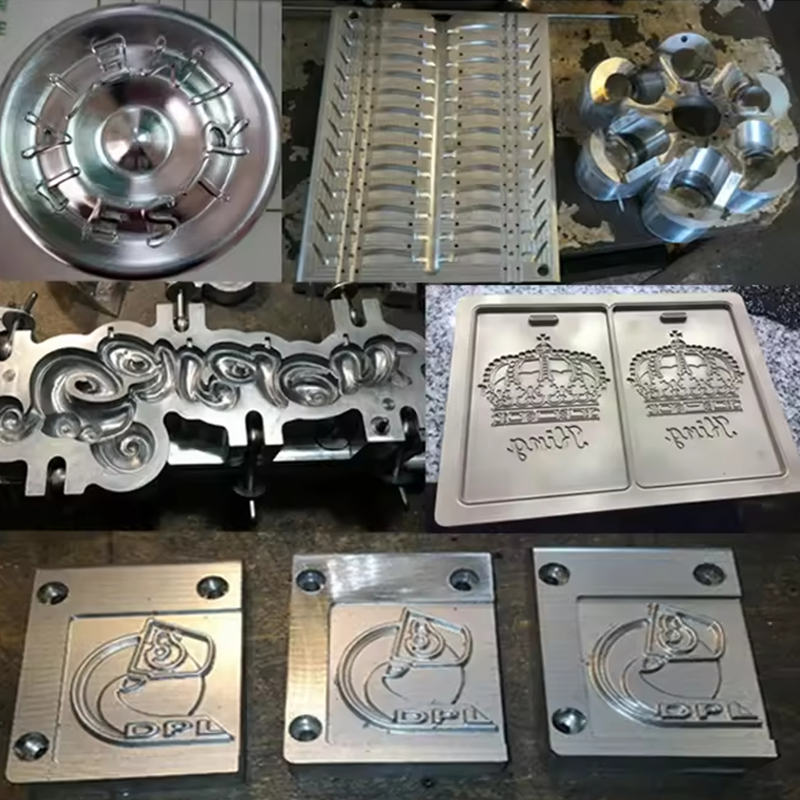

Automotive: Prototyping and production of molds and custom parts.
Medical: Manufacturing of orthopedic implants and surgical instruments.
Electronics: Precision machining of enclosures and connectors.
Education & Research: Training and development of advanced machining techniques.
Multi-axis capability (3/4/5-axis) for complex geometries.
Robust frame with vibration-damping properties.
High-speed spindle with variable RPM control.

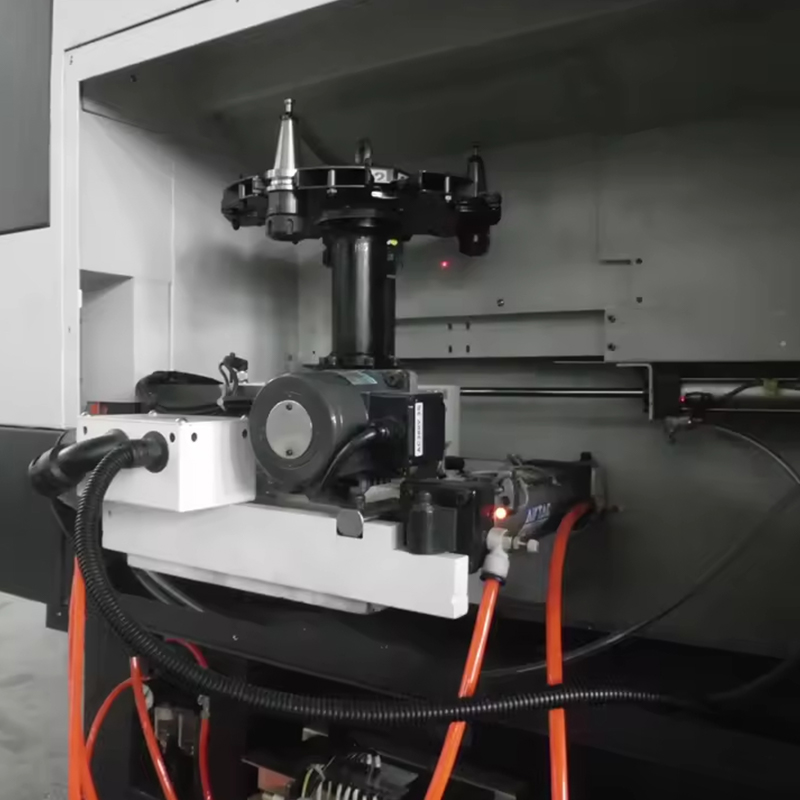

Automatic tool changer (optional) for uninterrupted operation.
An advanced cooling system to maintain thermal stability.
Description
Contact us

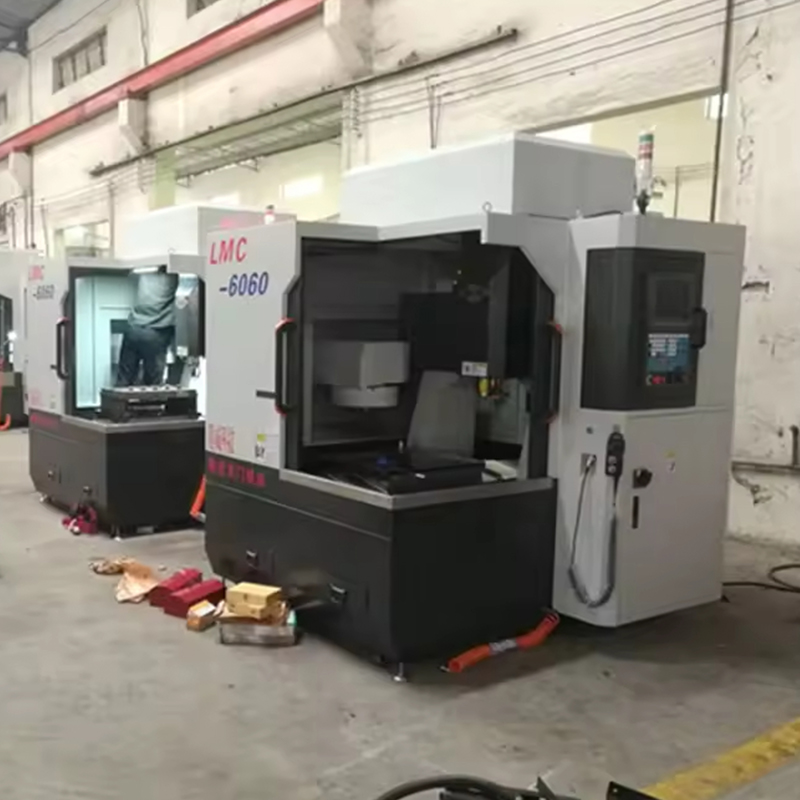

The DX-5050 features a rigid construction with a high-torque spindle and precision ball screws, ensuring consistent performance during prolonged operation. Its modular design allows for seamless integration of additional axes, adapting to evolving production demands. The machine is compatible with standard CAD/CAM software, facilitating efficient workflow from design to production.
Product Features/Advantages
Adaptable to small-batch and high-mix production.
Reduced setup time with an intuitive control interface.

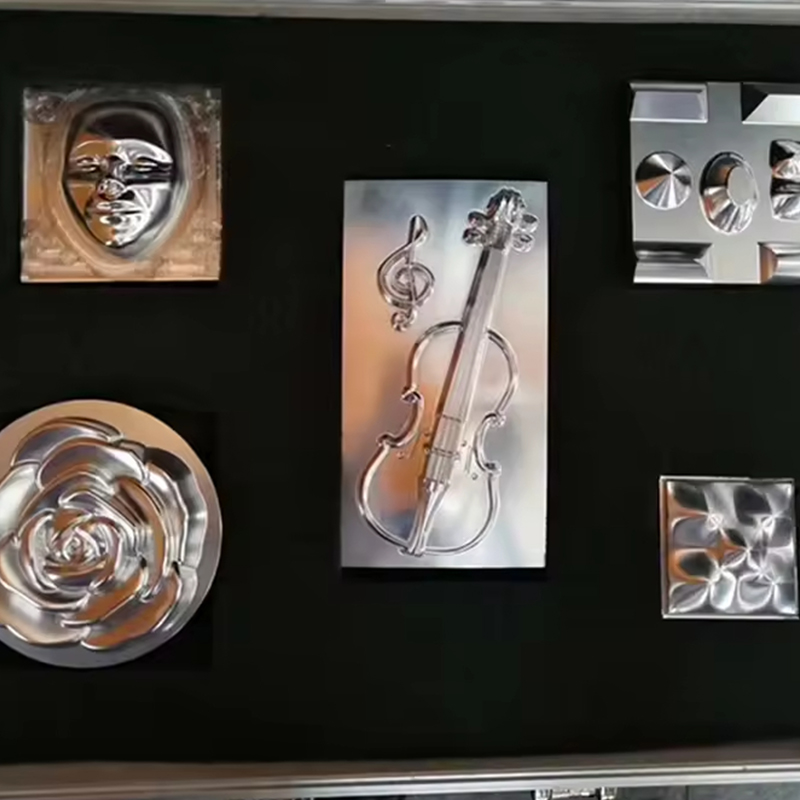

Enhanced surface finish due to minimized tool deflection.
Low maintenance requirements with durable components.
Item | Unit | DX5050 |
Working table | mm | 550×500 |
T-slot | mm | 5-14 |
Spindle speed | r/min | 3000-24000 |
Spindle power output | KW | 3.2 |
Spindle(tool diameter range) | Φ3-Φ12 | |
X axis | mm | 500 |
Y axis | mm | 500 |
Z axis | mm | 250 |
The minimum distance spindle to the table | 60 | |
Gantry height allowed | mm | 310 |
Gantry width | mm | 600 |
Model of a screw | 3205 | |
Model of line rail | X, Y, Z: H25 | |
Maximum speed | mm/min | 8000 |
Positioning precision | mm | 0.01/300 |
Repeat positioning precision | mm | 0.003 |
The working table's maximum load weight | kg | 200 |
Machine weight | kg | 2300 |
We can provide you with a satisfactory plan!
